Case Study — VW Golf DSG How We Fixed a Gearbox Malfunction for Under Half the Cost
A gearbox malfunction warning on a VW Golf usually means a quote for a new DSG mechatronic and a bill of around $4,000. It does not have to. This is what happened when a 2018 Golf arrived at our Fyshwick workshop — and how we fixed it for under half the price.
See the Full DSG Mechatronic Repair on Camera
From pulling the mechatronic off the bench to road-testing the finished car — this is the actual repair, filmed at our Fyshwick workshop.
Full rebuild footage — watch on YouTube
The Car and the Complaint

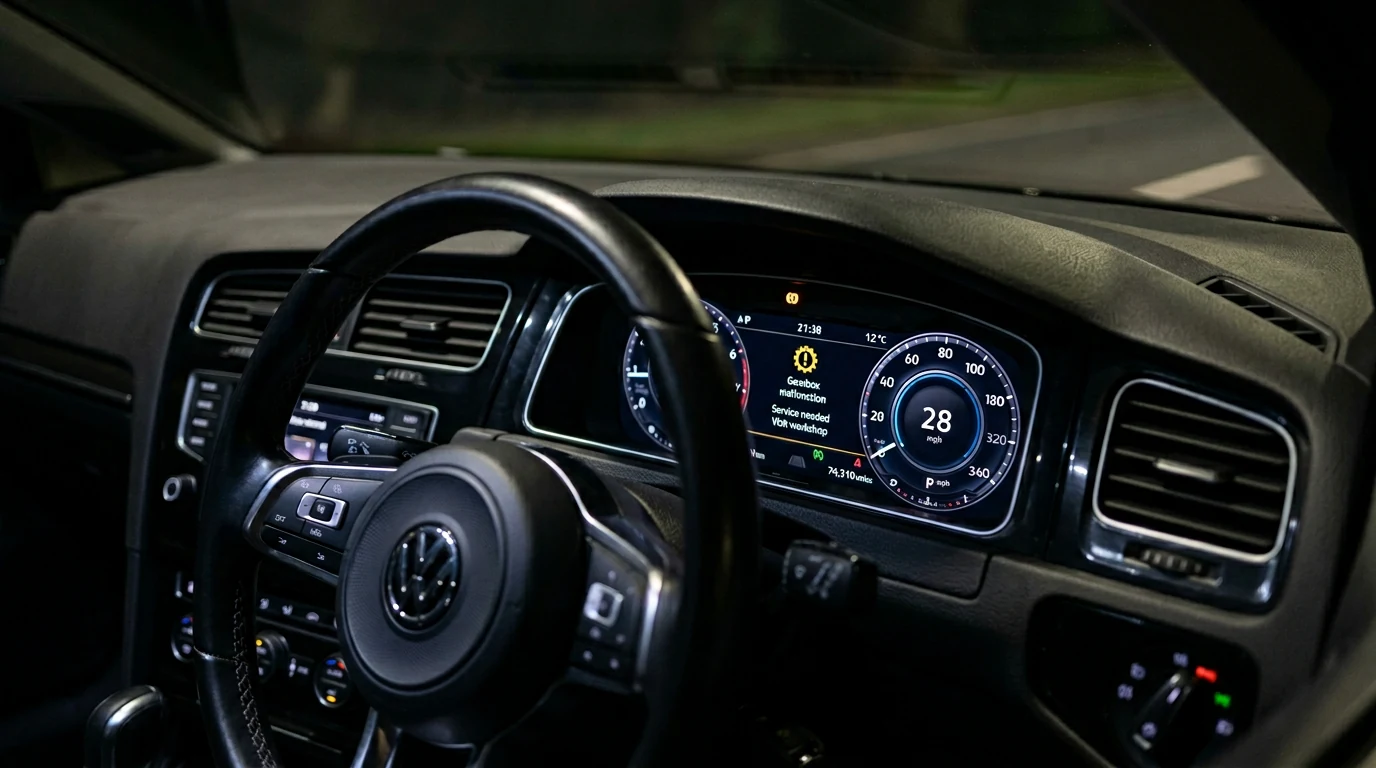

The owner of this 2018 VW Golf had only recently bought the car when the gearbox malfunction warning appeared. A new mechatronic was quoted elsewhere at roughly $4,000 — a hard pill to swallow on a car you have just paid for.
There is a common assumption that our workshop only handles performance builds and high-end European cars. Not the case. We repair everyday German and Italian cars all week — Volkswagen, Audi, Skoda and more — and DSG gearbox faults like this one are bread-and-butter work for us.
Diagnosis: Transmission Pressure Drop
Every gearbox job starts the same way in our workshop — confirm the fault before touching anything.
We scanned the car with factory-level diagnostic equipment, which returned a transmission pressure drop fault. That pointed us straight at the mechatronic — the combined hydraulic and electronic control unit that does the thinking and the shifting inside a DSG gearbox.
With the mechatronic out of the car and on the bench, the physical inspection confirmed it: the unit could not hold hydraulic pressure.
What Actually Fails Inside a DSG Mechatronic

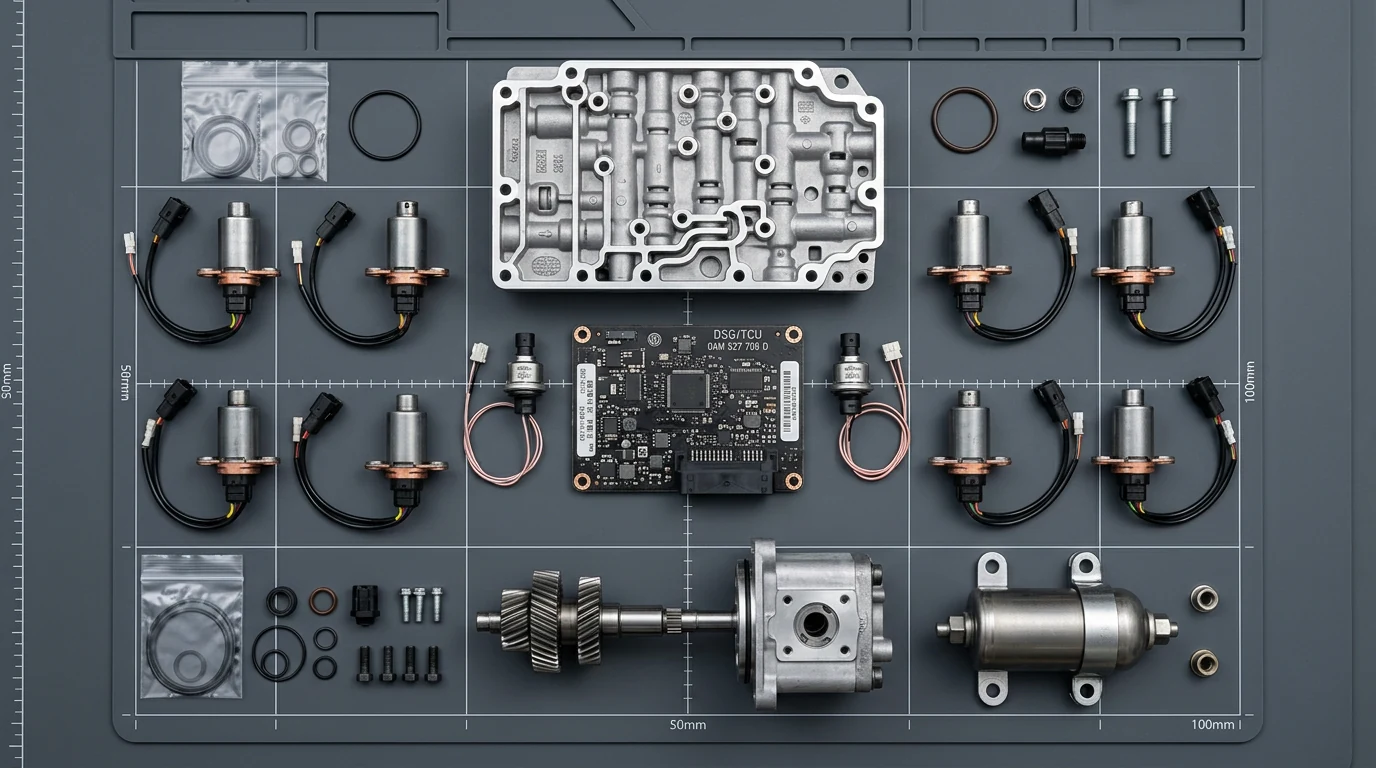

Inside the mechatronic you will find the hydraulic pump, the accumulator, the solenoids, the valve body and the electronic control board, all working under very high pressure.
In this Golf, the pump was doing its job — building pressure — but the accumulator was not holding it. So the pump ran continuously trying to keep up. That constant cycling is what triggers the gearbox malfunction warning, and you can often hear it as a hum or drone from the gearbox.

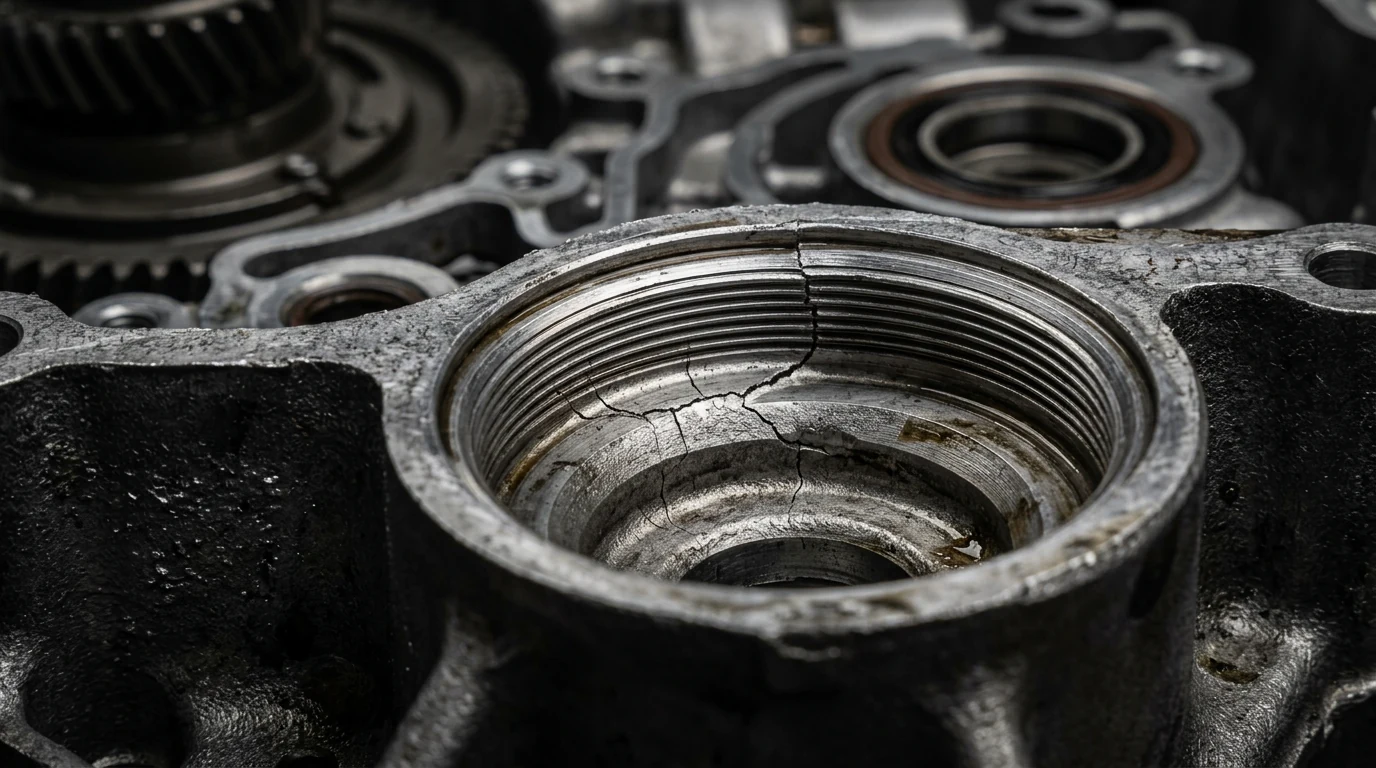

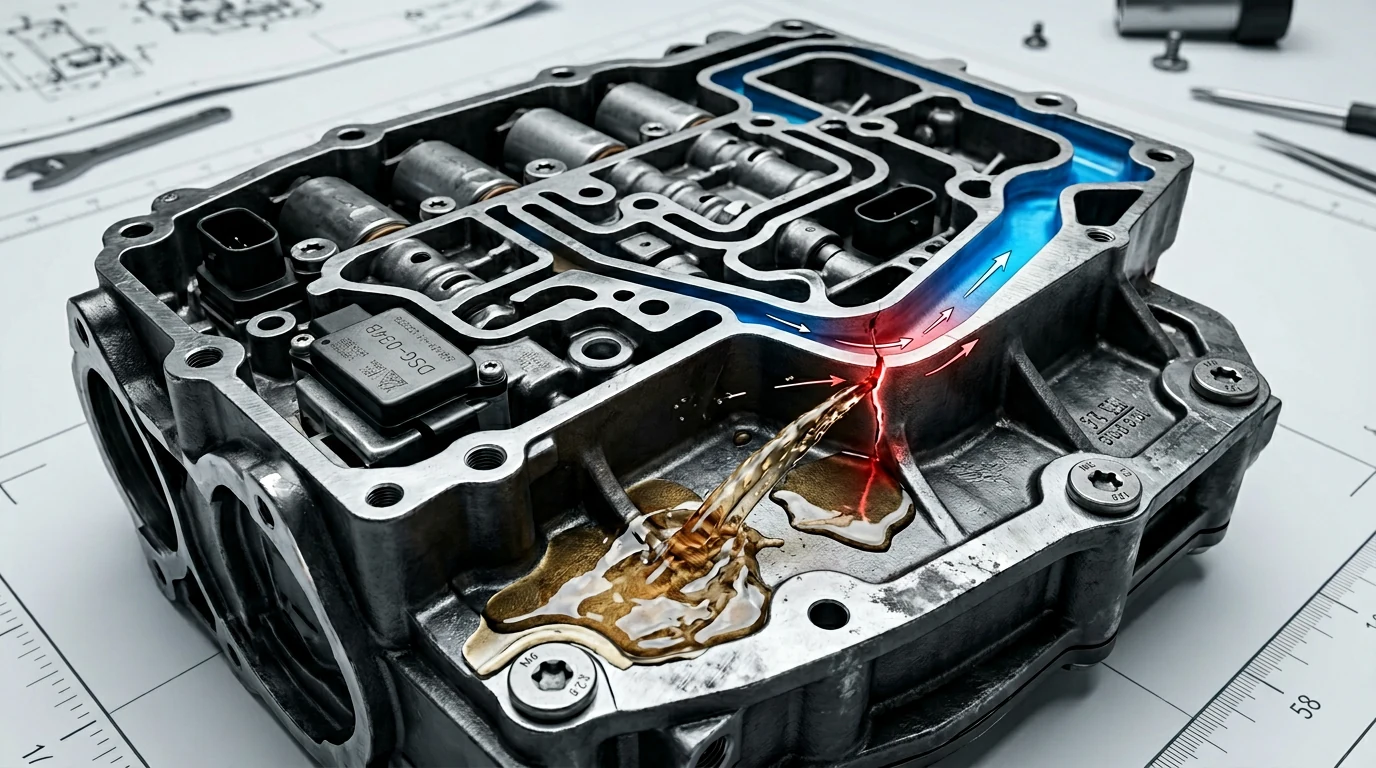

The root cause is a known weak point: the area where the accumulator seats in the housing. Because it runs at such high pressure, this area develops fine cracks over time and bleeds pressure away. It was common enough that Volkswagen ran a service campaign on these units with an updated valve body — yet the same failure still shows up years later.
Why Ignoring the Warning Gets Expensive
This is not a fault to drive through. When the accumulator cannot hold pressure, the pump runs far more than it was designed to. That draws sustained current through the electronic control board and wears the pump itself.
Ignore the warning long enough and a repairable fault becomes a damaged board and a worn pump on top of the original problem — which pushes the job towards full replacement territory and a significantly bigger bill.
Replace or Rebuild? The $4,000 Question
A new mechatronic for this gearbox costs around $4,000 fitted. For an owner who had just bought the car, that was the option we wanted to avoid.
The alternative was a proper rebuild:
- Strip and thoroughly clean the unit
- Sleeve the cracked accumulator seat — the actual root cause

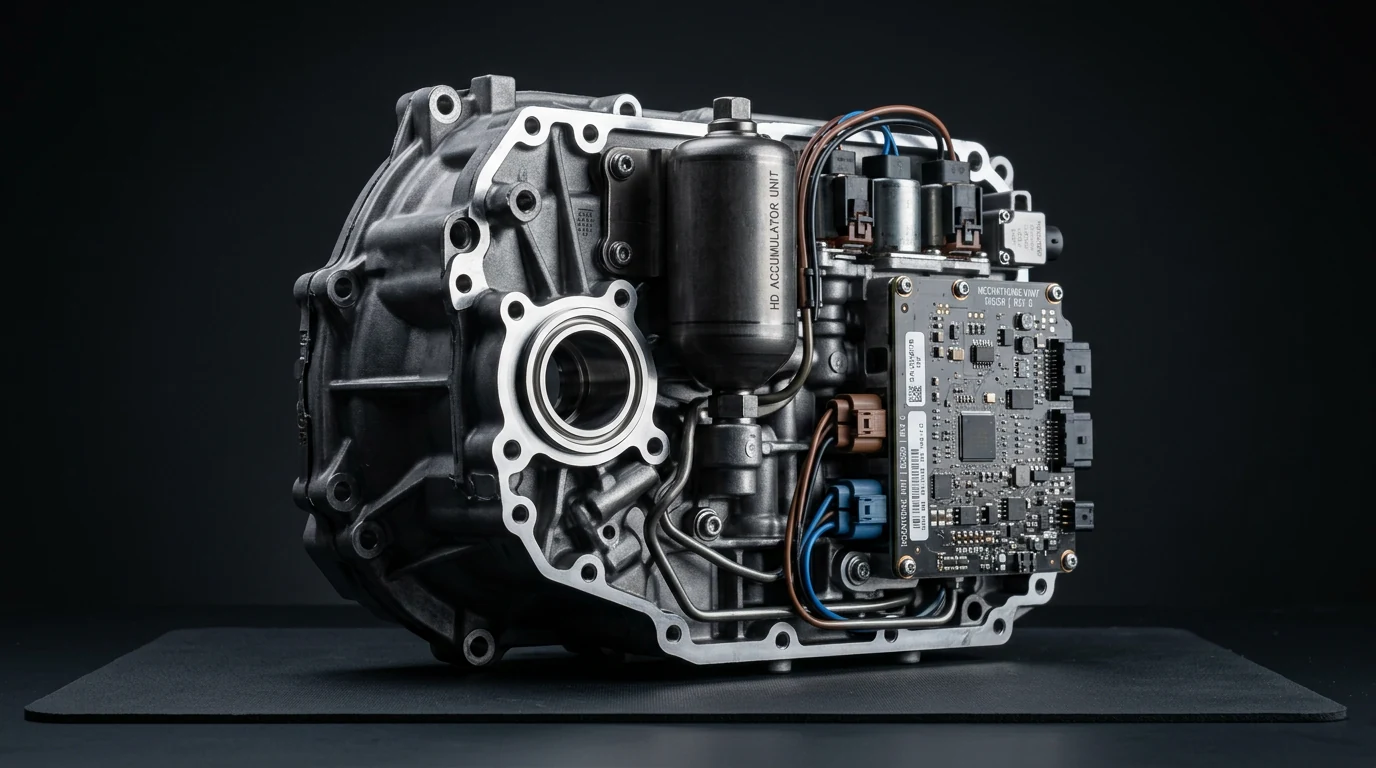

- Fit an upgraded accumulator designed so the failure cannot recur
- Replace the internal pressure sensor while the unit is apart
- Reassemble, pressure-test and road-test
The key difference between this and a basic repair: we do not just patch the crack. Sleeving the housing and fitting the upgraded accumulator removes the design weak point entirely. The rebuilt unit is stronger than it left the factory.
A Word of Warning on DIY
One thing we tell every owner who asks: do not open a mechatronic at home. The accumulator stores hydraulic pressure even with the unit out of the car, and undoing the wrong fastener can release it violently — violently enough to cause serious injury. This is a job for a workshop with the right equipment and experience.
Testing the Rebuild
A rebuild is only as good as its testing. Once reassembled, we bench-checked the pump function first: pressure builds, pressure holds, pump stops. Exactly what a healthy mechatronic does.
Back in the car, we completed a 21-kilometre road test covering normal driving conditions. No warning lamps, clean shifting, and the pump cycling normally.
The Result
- Fault fixed at the root cause, not patched over
- Upgraded accumulator and sleeved housing — the original failure cannot recur
- Rebuilt unit is stronger than it left the factory
- Car returned to a very relieved owner
Who Carried Out This Repair
Frequently Asked Questions
What does the gearbox malfunction warning mean on a VW Golf?
It means the transmission control system has detected a fault — commonly a hydraulic pressure problem inside the DSG mechatronic. The car needs a proper diagnostic scan to confirm the cause before anyone quotes you for parts.
What causes a DSG mechatronic to fail?
A frequent cause is the accumulator area of the housing developing fine cracks under high pressure. The accumulator stops holding pressure, the pump runs continuously, and the gearbox malfunction warning appears. Worn sensors and solenoids can also trigger faults.
Can a mechatronic be repaired instead of replaced?
Yes, in many cases. A quality rebuild strips the unit, fixes the root cause (such as sleeving a cracked accumulator seat), replaces worn internal components and fully tests the unit. Done properly, it costs well under half the price of a new mechatronic.
How much does DSG mechatronic repair cost in Australia?
A new mechatronic typically costs around $4,000 fitted. A professional rebuild generally comes in at under half that figure, depending on the fault. We confirm the exact fault with factory-level diagnostics before quoting.
Is a rebuilt mechatronic reliable?
A properly rebuilt unit — with the root cause addressed, not just patched — can be more durable than the original, because the known weak point is engineered out. We back our mechatronic rebuilds with a warranty.
Can I keep driving with the gearbox malfunction light on?
We do not recommend it. The longer the pump runs continuously, the more strain on the electronic control board and the pump itself — which can turn a repairable fault into a far more expensive one.
